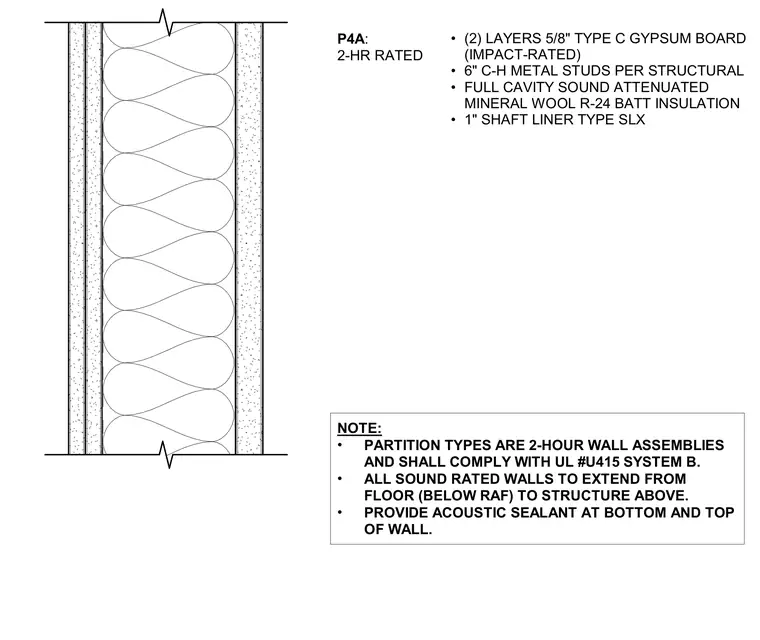

This two-hour rated wall assembly utilizes six-inch C-H metal studs framed per structural requirements and complies with UL system U415. The core features a one-inch shaft liner type SLX on one side and two layers of five-eighths-inch impact-rated type C gypsum board on the opposing face. The full cavity is filled with sound-attenuated mineral wool R-24 batt insulation. Sound-rated conditions require the partitions to extend from the floor slab below up to the structure above, with acoustic sealant applied at both bottom and top joints.
NOTE: • PARTITION TYPES ARE 2-HOUR WALL ASSEMBLIES AND SHALL COMPLY WITH UL #U415 SYSTEM B. • ALL SOUND RATED WALLS TO EXTEND FROM FLOOR (BELOW RAF) TO STRUCTURE ABOVE. • PROVIDE ACOUSTIC SEALANT AT BOTTOM AND TOP OF WALL. P4A : 2-HR RATED • (2) LAYERS 5/8" TYPE C GYPSUM BOARD (IMPACT-RATED) • 6" C-H METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-24 BATT INSULATION • 1" SHAFT LINER TYPE SLX
