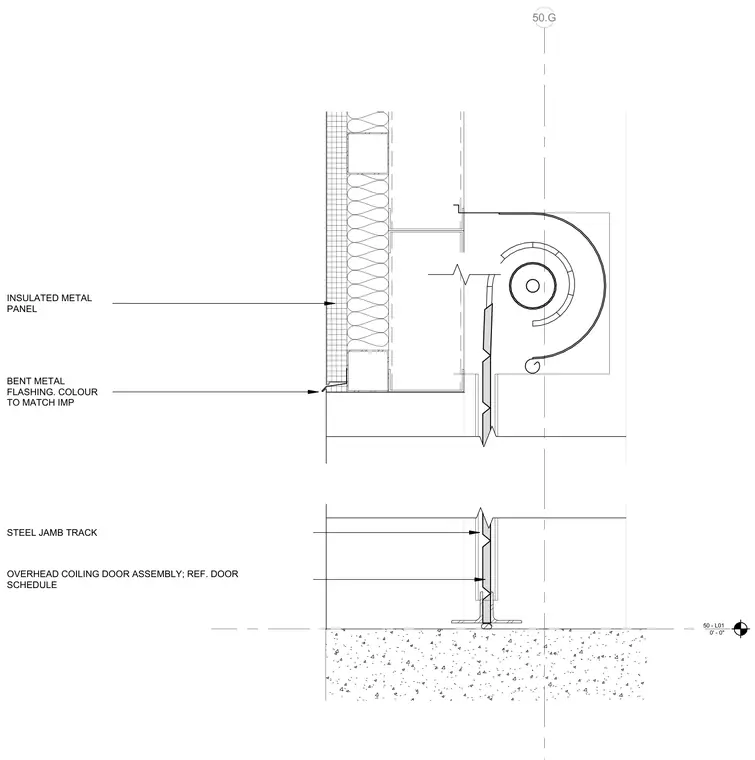

An overhead coiling door assembly interfaces with an insulated metal panel wall system and a steel jamb track. Bent metal flashing is finished with a color matching the insulated metal panel. The coiling door mechanism is detailed with guide tracks anchored adjacent to the exterior wall assembly.
50 - L01 0' - 0" 50.G OVERHEAD COILING DOOR ASSEMBLY; REF. DOOR SCHEDULE STEEL JAMB TRACK BENT METAL FLASHING. COLOUR TO MATCH IMP INSULATED METAL PANEL
