Interiors · A-M3ME4

Cabinet Door and Drawer Pull Placement Details

Materials

Elements

About this detail

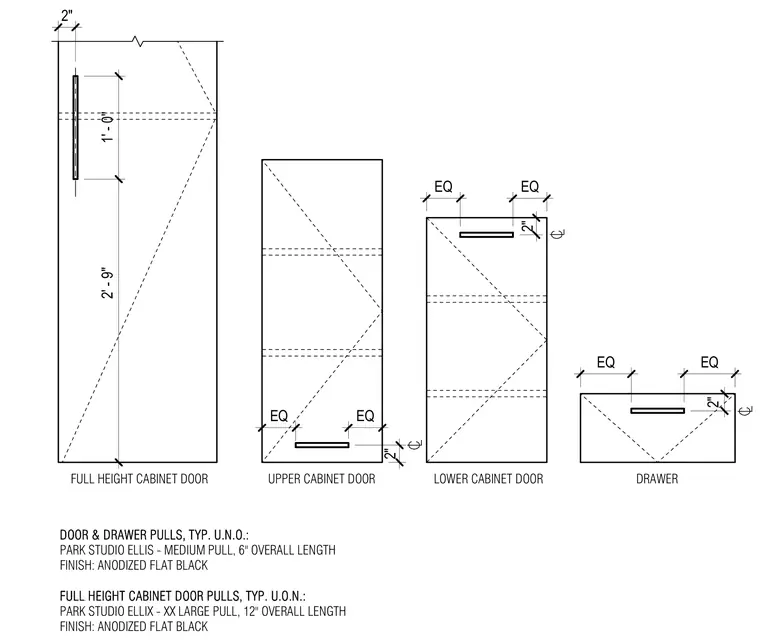

Cabinet door and drawer pull placement dimensions specify hardware locations for millwork assemblies. Full height cabinet doors use Park Studio Ellix extra large 12-inch overall length pulls positioned 2 feet 9 inches from the bottom and 1 foot 0 inches from the top. Upper cabinet doors, lower cabinet doors, and drawers use Park Studio Ellis medium 6-inch overall length pulls located 2 inches from the edge with equal spacing across the panel width. All hardware features an anodized flat black finish unless noted otherwise.
