Architectural · A-M3JRK

Accessibility Lavatory Vanity Support and Wall Detail

Materials

Steel Masonry / CMU Stone Gypsum / Drywall

Elements

Waterproofing / Flashing Anchors / Embeds Connections / Plates

Connections

HSS Connection Bolted Connection Embed Plate

About this detail

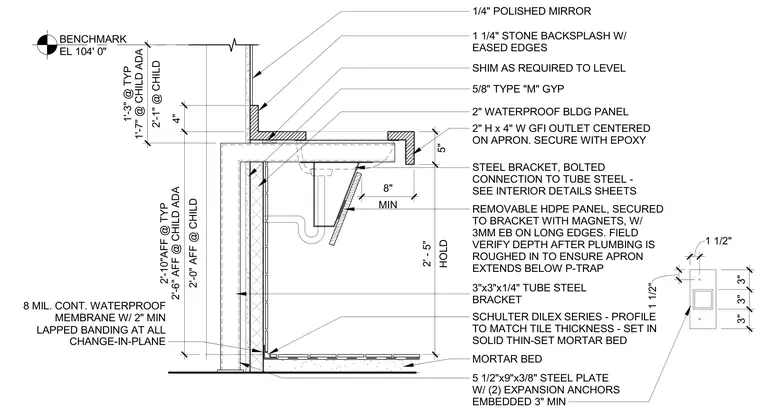

A wall-mounted vanity sink assembly is supported by a 3-inch by 3-inch by 1/4-inch tube steel bracket. The steel bracket is secured with a 5-1/2-inch by 9-inch by 3/8-inch steel plate featuring two expansion anchors embedded a minimum of 3 inches into the wall structure, using shims as required to level. A removable high-density polyethylene panel attaches to the bracket with magnets and features 3mm edge banding on long edges, designed to extend below the P-trap based on field-verified plumbing rough-in depths. The assembly includes a 1-1/4-inch stone backsplash with eased edges, a 2-inch waterproof building panel, and a 2-inch high by 4-inch wide GFI outlet secured with epoxy on the apron. Wall construction incorporates 5/8-inch Type M gypsum board over an 8-mil continuous waterproof membrane with 2-inch minimum lapped banding at all changes in plane. Floor finishes consist of a mortar bed set with Schluter Dilex series profiles matching the tile thickness.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
