A transition from a composite deck floor slab to a steel stair assembly incorporates a painted hollow structural section stringer and a supporting steel beam framing member located per structural drawings. A one-foot one-inch handrail extension features a return to the pan or stringer, maintaining a seven-inch maximum stringer extension where applicable. Floor finishes are applied per architectural plans over the composite deck and support angle.

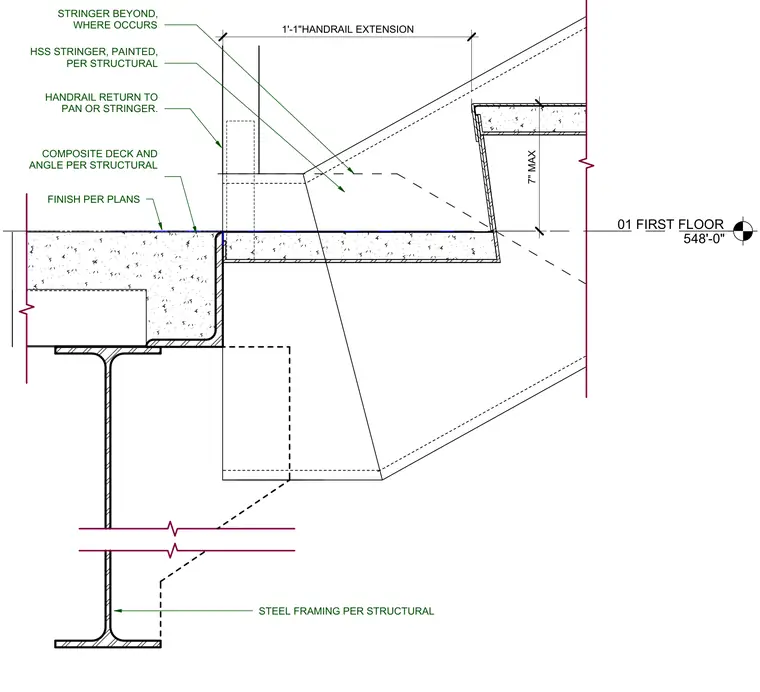

01 FIRST FLOOR 548'-0" FINISH PER PLANS COMPOSITE DECK AND ANGLE PER STRUCTURAL 1'-1"HANDRAIL EXTENSION HANDRAIL RETURN TO PAN OR STRINGER. 7" MAX STRINGER BEYOND, WHERE OCCURS STEEL FRAMING PER STRUCTURAL HSS STRINGER, PAINTED, PER STRUCTURAL
