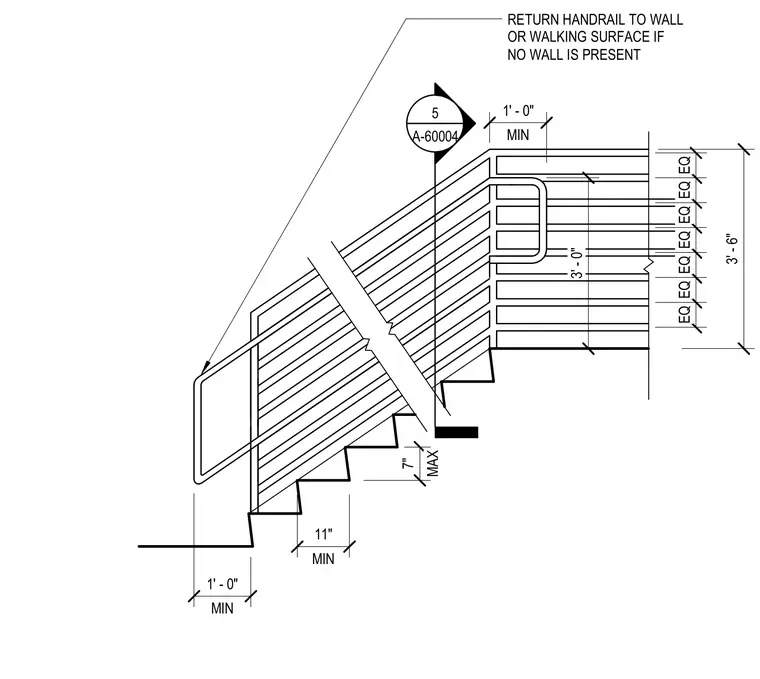

An egress stair assembly features a guardrail height of three feet six inches with evenly spaced infill members maintaining a four-inch maximum opening. A continuous handrail is positioned at three feet above the stair nosing and extends a minimum of one foot beyond the top and bottom risers, returning to the wall or walking surface. Stair treads require a minimum eleven-inch run and risers a seven-inch maximum height.
RETURN HANDRAIL TO WALL OR WALKING SURFACE IF NO WALL IS PRESENT 3' - 6" EQ EQ EQ EQ EQ EQ EQ MIN 1' - 0" MIN 11" MAX 7" 3' - 0" MIN 1' - 0" 5 A-60004
