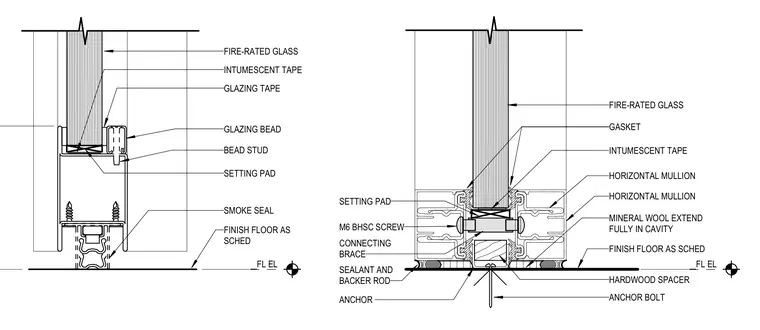

Fire-rated glass is set on setting pads and secured within horizontal mullions using intumescent tape, glazing tape, and gaskets. M6 button head socket cap screws fasten the assembly, while a connecting brace and hardwood spacer provide interior support. Mineral wool extends fully in the cavity for fire-stopping, and the base is sealed with sealant and backer rod over an anchor bolt secured to the finish floor.
FL EL FINISH FLOOR AS SCHED SCHEDULED GLAZING TAPE FIRE-RATED GLASS SMOKE SEAL SETTING PAD INTUMESCENT TAPE BEAD STUD GLAZING BEAD ANCHOR GASKET HORIZONTAL MULLION FIRE-RATED GLASS M6 BHSC SCREW INTUMESCENT TAPE HORIZONTAL MULLION MINERAL WOOL EXTEND FULLY IN CAVITY FL EL FINISH FLOOR AS SCHED SETTING PAD CONNECTING BRACE ANCHOR BOLT HARDWOOD SPACER SEALANT AND BACKER ROD
