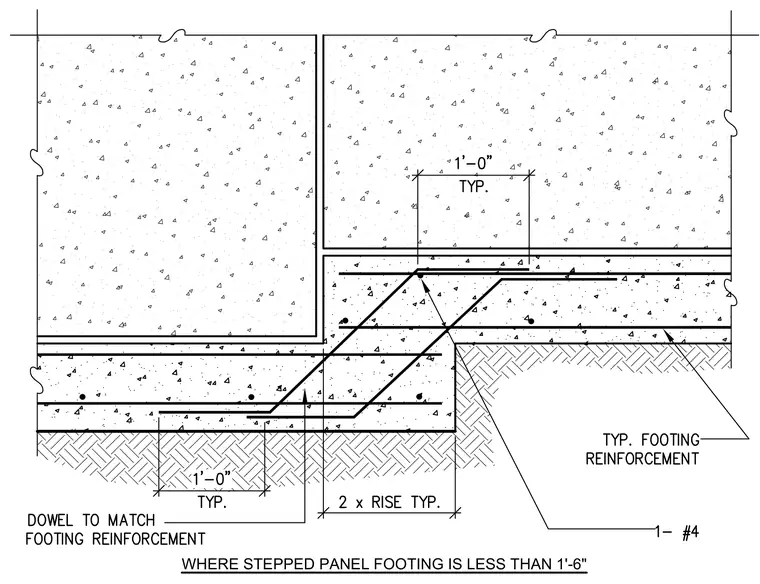

Concrete panel footings step down with reinforcing steel bars and dowels matching the main footing reinforcement. A transition zone includes bent reinforcing bars with specific lap lengths and spacing based on twice the rise dimension. Typical footing reinforcement continues through the stepped section.
