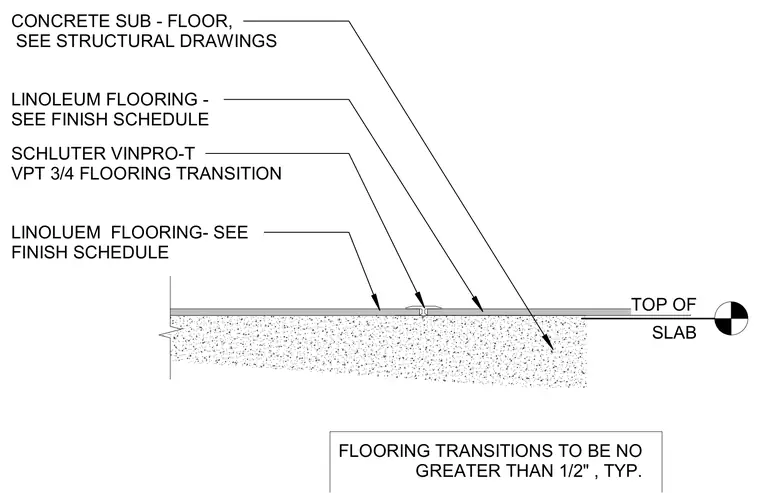

Linoleum flooring meets across a Schluter Vinpro-T VPT 3/4 flooring transition metal strip over a concrete sub-floor. Flooring transitions are specified to be no greater than one-half inch typical. Linoleum flooring materials are sized per the finish schedule while the concrete sub-floor is coordinated per the structural drawings.
SLAB TOP OF SCHLUTER VINPRO-T VPT 3/4 FLOORING TRANSITION LINOLUEM FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS LINOLEUM FLOORING - SEE FINISH SCHEDULE FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
