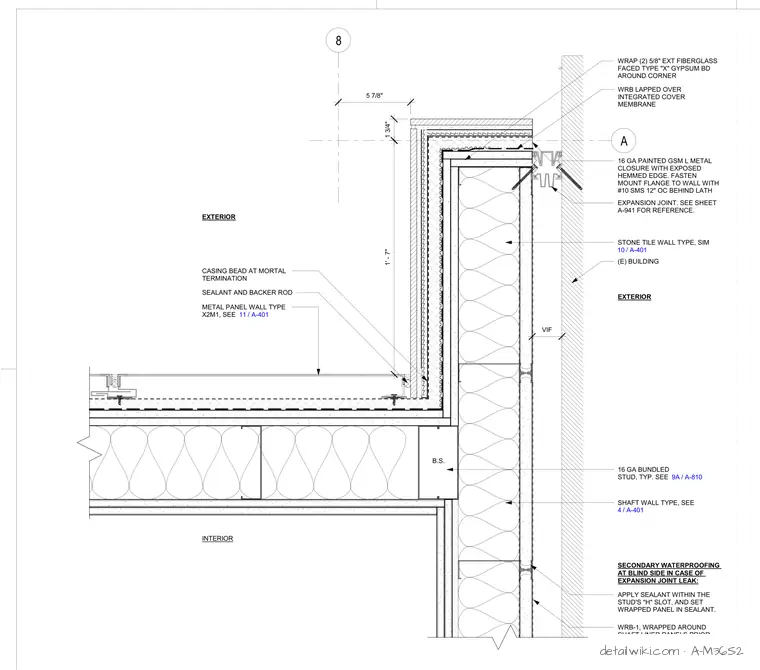

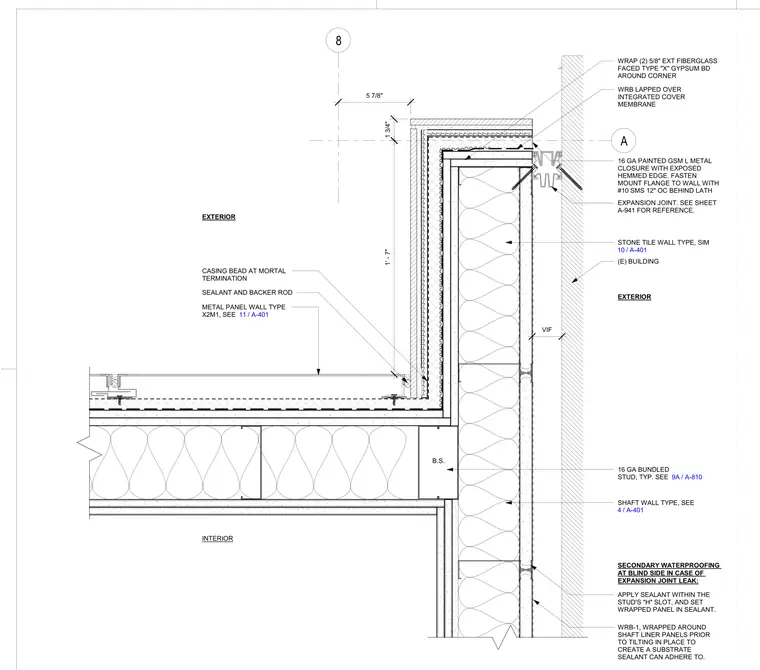

An exterior stone tile wall corner incorporates an expansion joint with a 16-gauge painted galvanized steel metal closure having an exposed hemmed edge and mounting flange fastened with number 10 sheet metal screws at 12 inches on center behind the lath. The corner wraps two layers of 5/8-inch exterior fiberglass-faced Type X gypsum board over a water-resistive barrier lapped over an integrated cover membrane. A casing bead at mortar termination pairs with sealant and backer rod at the metal panel wall type junction. The framing utilizes 16-gauge bundled studs with weather-resistive barrier wrapped around shaft liner panels prior to tilting in place, sealed with sealant applied within the stud's H-slot to create a substrate for blind-side secondary waterproofing.
INTERIOR 8 A EXTERIOR 1 3/4" STONE TILE WALL TYPE, SIM / 10 A-401 WRAP (2) 5/8" EXT FIBERGLASS FACED TYPE "X" GYPSUM BD AROUND CORNER EXTERIOR 5 7/8" SHAFT WALL TYPE, SEE / 4 A-401 METAL PANEL WALL TYPE X2M1, SEE / 11 A-401 1' - 7" SEALANT AND BACKER ROD CASING BEAD AT MORTAL TERMINATION (E) BUILDING VIF 16 GA PAINTED GSM L METAL CLOSURE WITH EXPOSED HEMMED EDGE. FASTEN MOUNT FLANGE TO WALL WITH #10 SMS 12" OC BEHIND LATH EXPANSION JOINT. SEE SHEET A-941 FOR REFERENCE. WRB LAPPED OVER INTEGRATED COVER MEMBRANE 16 GA BUNDLED STUD, TYP. SEE / 9A A-810 B.S. WRB-1, WRAPPED AROUND SHAFT LINER PANELS PRIOR TO TILTING IN PLACE TO CREATE A SUBSTRATE SEALANT CAN ADHERE TO. APPLY SEALANT WITHIN THE STUD'S "H" SLOT, AND SET WRAPPED PANEL IN SEALANT. SECONDARY WATERPROOFING AT BLIND SIDE IN CASE OF EXPANSION JOINT LEAK:
