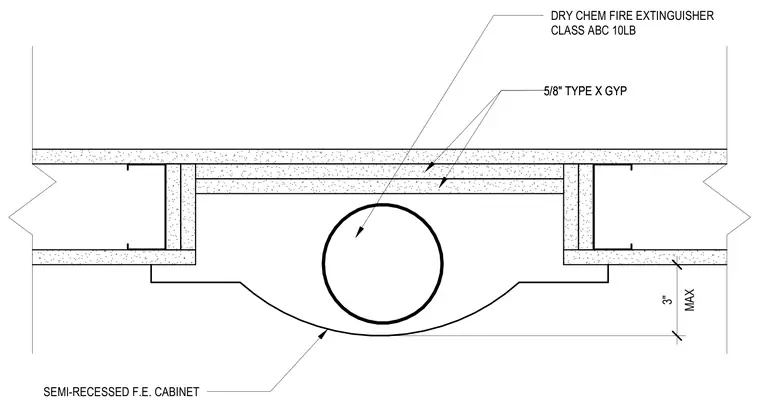

A semi-recessed fire extinguisher cabinet is framed within a stud wall lined with five-eighths inch Type X gypsum board. The ten-pound dry chemical fire extinguisher of class ABC sits inside the cabinet with a maximum projection of three inches from the wall face.
5/8" TYPE X GYP 5/8" TYPE X GYP MAX 3" DRY CHEM FIRE EXTINGUISHER CLASS ABC 10LB SEMI-RECESSED F.E. CABINET
