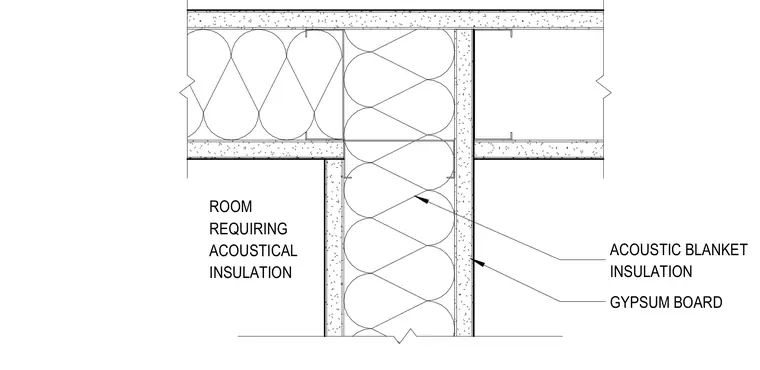

An acoustic blanket insulation layer fills the stud cavity of the partition separating the room requiring acoustical insulation. Layers of gypsum board finish both sides of the metal framing studs. The intersecting partition abuts the face of the continuous wall assembly.
