Architectural · A-M2SZM

Typical Monitoring Probe

Materials

Elements

About this detail

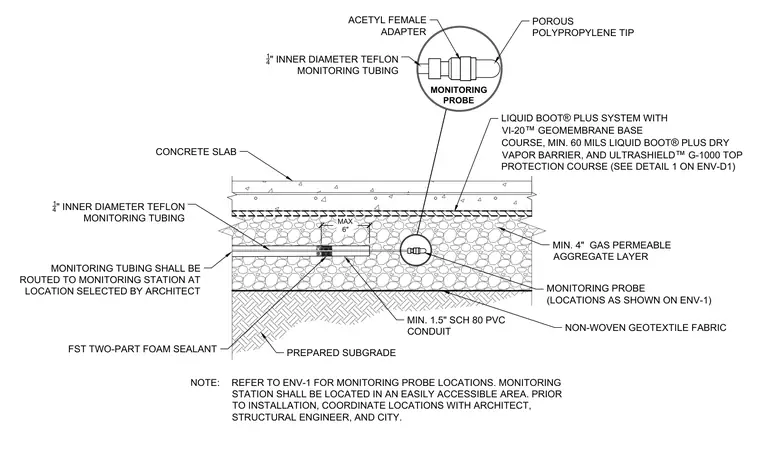

A porous polypropylene tip with an acetyl female adapter connects to one-fourth-inch inner diameter Teflon monitoring tubing housed within a minimum one-and-a-half-inch Schedule 80 PVC conduit. The assembly is installed within a minimum four-inch gas permeable aggregate layer over a non-woven geotextile fabric and prepared subgrade. The assembly sits beneath a Liquid Boot Plus system consisting of a minimum sixty mils Liquid Boot Plus dry vapor barrier, VI-twenty geomembrane base course, and Ultrashield G-one-thousand top protection course beneath a concrete slab. An FST two-part foam sealant seals the conduit penetration with a maximum six-inch clearance. Monitoring tubing routes to a monitoring station at a location selected by the architect.
