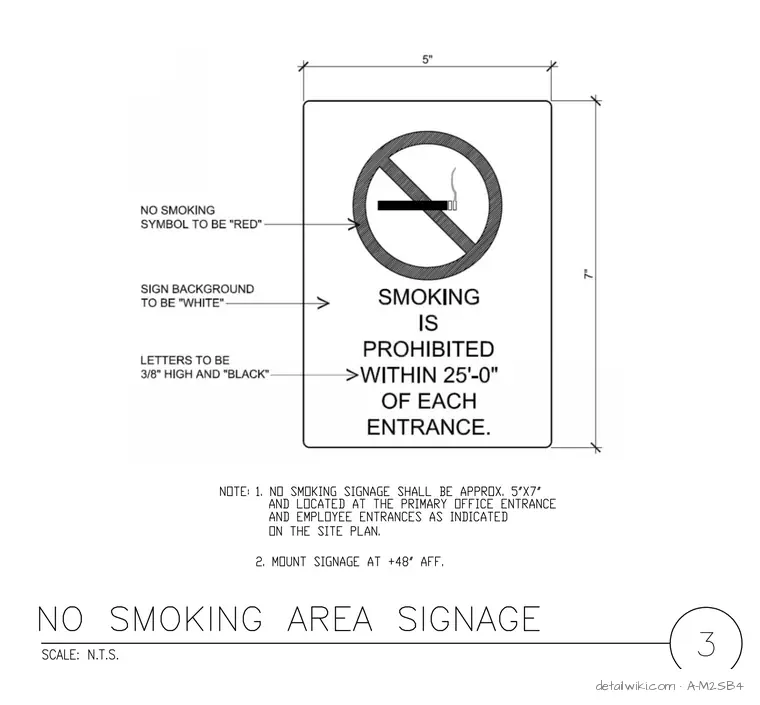

The sign measures five inches wide by seven inches high with rounded corners, featuring a white background and a red no-smoking symbol. The black lettering reads smoking is prohibited within twenty-five feet of each entrance, with letters standing three-eighths of an inch high. Signage is located at the primary office entrance and employee entrances as indicated on the site plan. The sign is mounted at forty-eight inches above finished floor.
