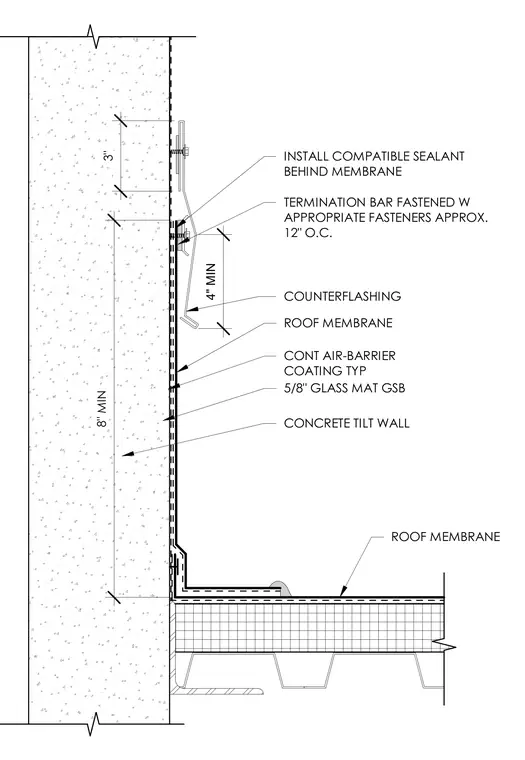

The roof membrane turns up the vertical concrete tilt-up wall over a continuous air barrier coating and 5/8-inch glass mat gypsum sheathing. A counterflashing is installed over the membrane termination and secured with a termination bar fastened at approximately 12 inches on center. Compatible sealant is applied behind the membrane at the top edge for weather tightness. The detail maintains a minimum 8-inch vertical rise for the roof membrane and a 4-inch minimum overlap for the counterflashing.
3" INSTALL COMPATIBLE SEALANT BEHIND MEMBRANE TERMINATION BAR FASTENED W APPROPRIATE FASTENERS APPROX. 12" O.C. COUNTERFLASHING ROOF MEMBRANE 8" MIN ROOF MEMBRANE CONCRETE TILT WALL CONT AIR-BARRIER COATING TYP 5/8" GLASS MAT GSB 4" MIN
