Architectural · A-M2A9X

Hollow Metal Door Frame at Cold-Formed Steel Stud Wall

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Doors

Connections

Welded Connection

About this detail

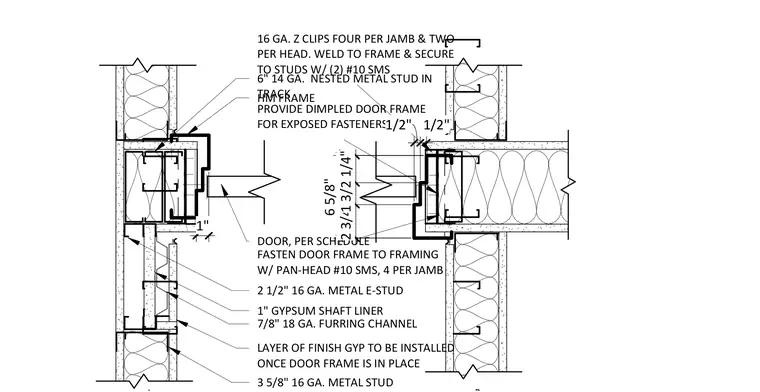

A hollow metal door frame is installed within a cold-formed metal stud wall assembly. The frame is secured using 16-gauge Z clips fastened with two #10 sheet metal screws per stud, four per jamb and two per head. The door frame is welded to the Z clips and anchored to nested metal studs in track framing using pan-head #10 sheet metal screws, four per jamb. Dimpled door frame construction accommodates exposed fasteners. The wall assembly incorporates 3-5/8-inch 16-gauge metal studs, 2-1/2-inch 16-gauge metal E-studs, 1-inch gypsum shaft liner, and 7/8-inch 18-gauge furring channels. A layer of finish gypsum board is installed once the door frame is in place.
