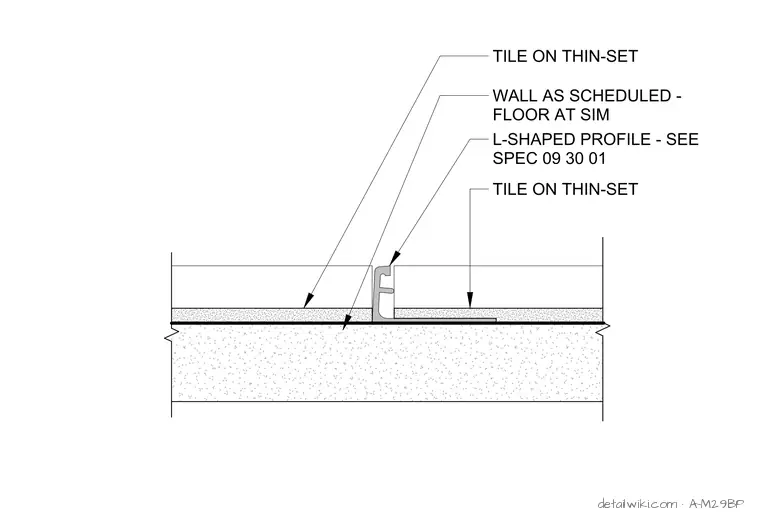

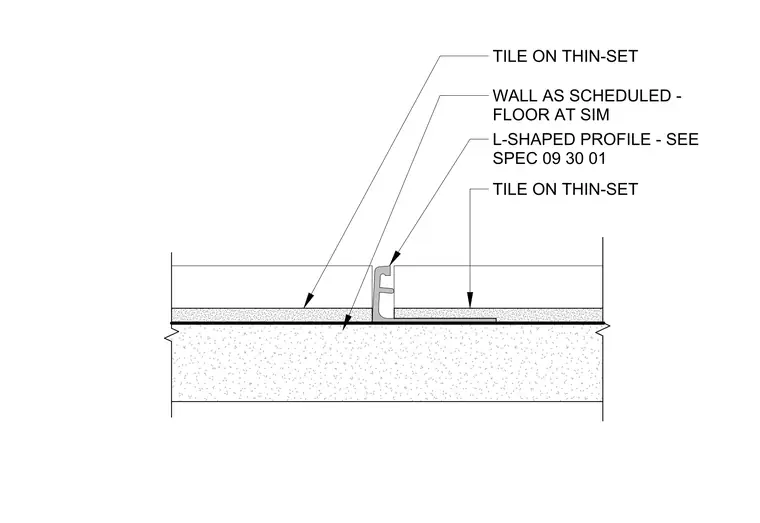

This assembly features an L-shaped metal profile installed between two tile surfaces set in thin-set mortar. The profile acts as a transition or edge trim, with the horizontal leg embedded into the thin-set bed beneath the tile. The vertical leg of the profile provides a clean edge for the adjacent tile finish. The wall and floor substrates are as scheduled, with the floor condition similar to the wall condition.
