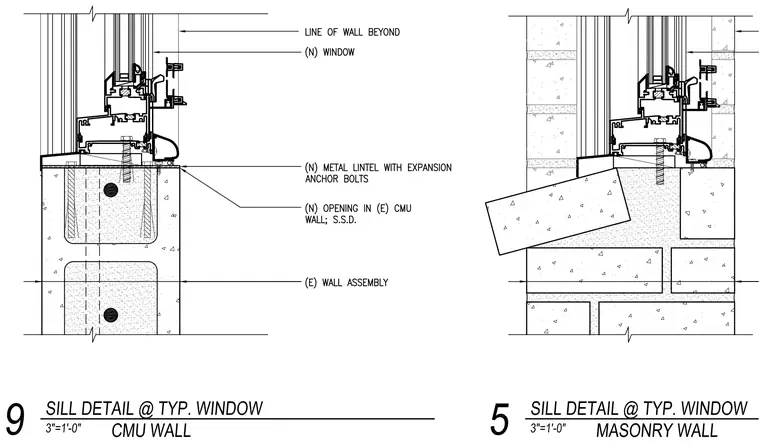

Window sill installation conditions for typical windows supported on existing concrete masonry unit and masonry walls. The new window assembly bears on a new metal lintel secured with expansion anchor bolts. The opening is formed within the existing concrete masonry unit wall assembly. Flashing and interior/exterior finish lines are indicated relative to the wall beyond.
