A solid surface countertop features a built-up edge condition with a one-quarter-inch projection and a total vertical dimension of one and sixty-one one-hundred-twenty-eighths inches. A cabinet door or drawer is positioned below where it occurs to maintain proper clearance from the countertop overhang.

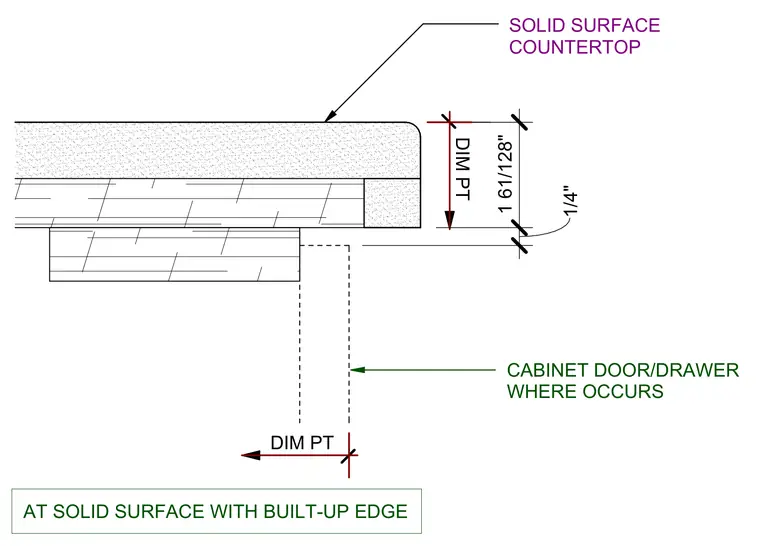

AT SOLID SURFACE WITH BUILT-UP EDGE CABINET DOOR/DRAWER WHERE OCCURS DIM PT DIM PT 1 61/128" 1/4" SOLID SURFACE COUNTERTOP
