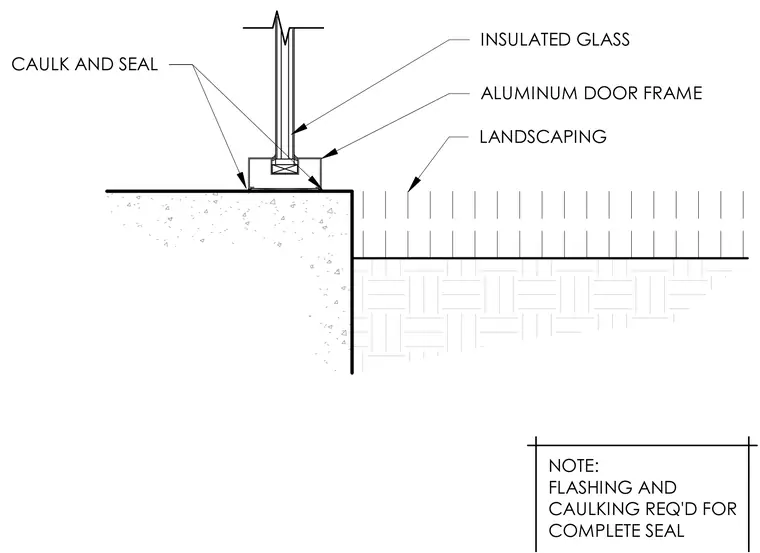

An aluminum door frame supports an insulated glass unit at the sill transition above a concrete substrate. Caulk and seal are applied at the exterior and interior perimeter joints to maintain a weatherproof barrier. Exterior landscaping abuts the foundation wall adjacent to the threshold. Flashing and caulking are required for a complete seal.
INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
