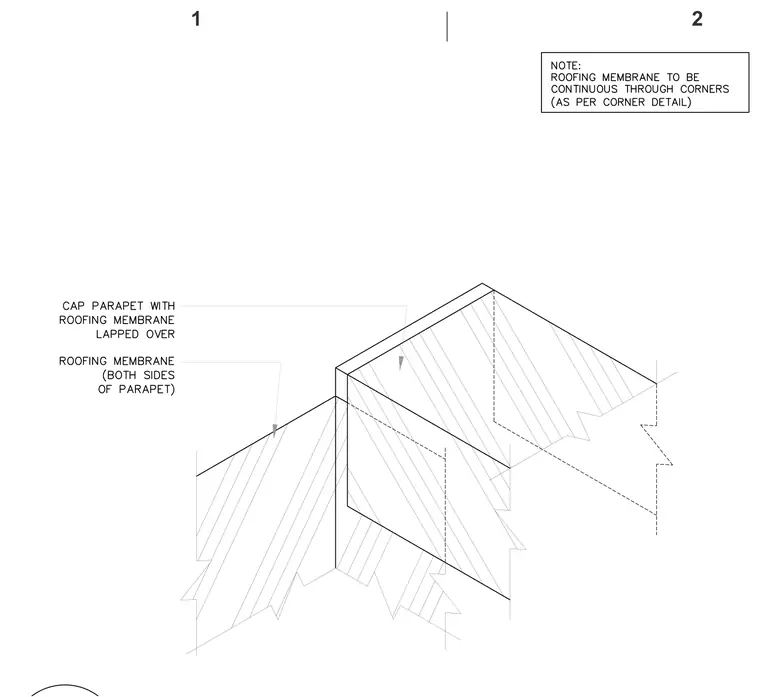

The parapet is capped with a roofing membrane lapped over the top surface. The roofing membrane extends continuously down both sides of the parapet wall. A construction note specifies that the roofing membrane must remain continuous through corners in accordance with the corner detail.
