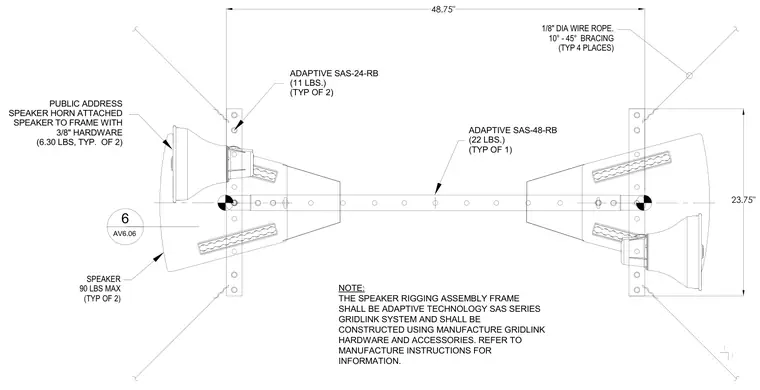

Two public address speaker horns weighing up to ninety pounds each attach to an Adaptive Technology SAS series gridlink frame using three-eighths-inch hardware. The assembly incorporates Adaptive SAS-twenty-four-RB brackets weighing eleven pounds each and an Adaptive SAS-forty-eight-RB bracket weighing twenty-two pounds. One-eighth-inch diameter wire rope provides ten to forty-five degree bracing in four places. The framing system utilizes manufacturer gridlink hardware and accessories constructed per manufacturer instructions.
48.75" 23.75" AV6.06 1 1 ADAPTIVE SAS-24-RB (11 LBS.) (TYP OF 2) ADAPTIVE SAS-48-RB (22 LBS.) (TYP OF 1) PUBLIC ADDRESS SPEAKER HORN ATTACHED SPEAKER TO FRAME WITH 3/8" HARDWARE (6.30 LBS, TYP. OF 2) NOTE: THE SPEAKER RIGGING ASSEMBLY FRAME SHALL BE ADAPTIVE TECHNOLOGY SAS SERIES GRIDLINK SYSTEM AND SHALL BE CONSTRUCTED USING MANUFACTURE GRIDLINK HARDWARE AND ACCESSORIES. REFER TO MANUFACTURE INSTRUCTIONS FOR INFORMATION. SPEAKER 90 LBS MAX (TYP OF 2) 1/8" DIA WIRE ROPE. 10° - 45° BRACING (TYP 4 PLACES) 6
