Stainless Steel Handrail at Structural Deck Edge

Materials

Elements

Columns Beams Decks Connections / Plates

About this detail

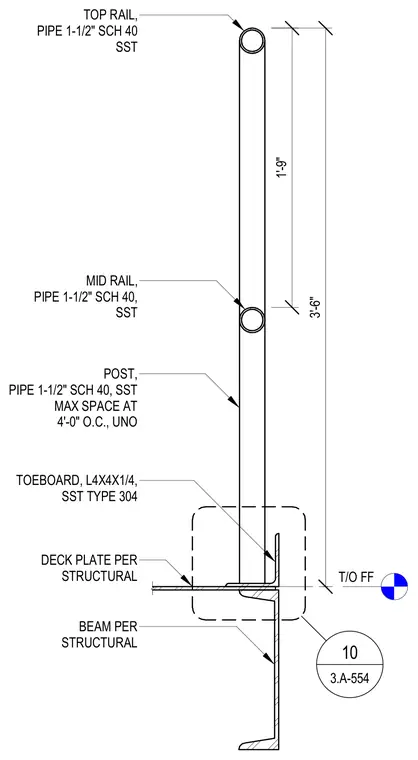

A stainless steel handrail assembly consists of a one-and-one-half-inch Schedule forty top rail and mid-rail supported by matching posts spaced at four feet on center. An angle toeboard measuring four by four by one-quarter inches in Type thirty-four stainless steel is positioned at the base above the deck plate. The vertical post fastens to a deck plate and structural beam sized per structural drawings. Vertical dimensions locate the mid-rail at one foot nine inches and the top rail at three feet six inches above the finished floor.
