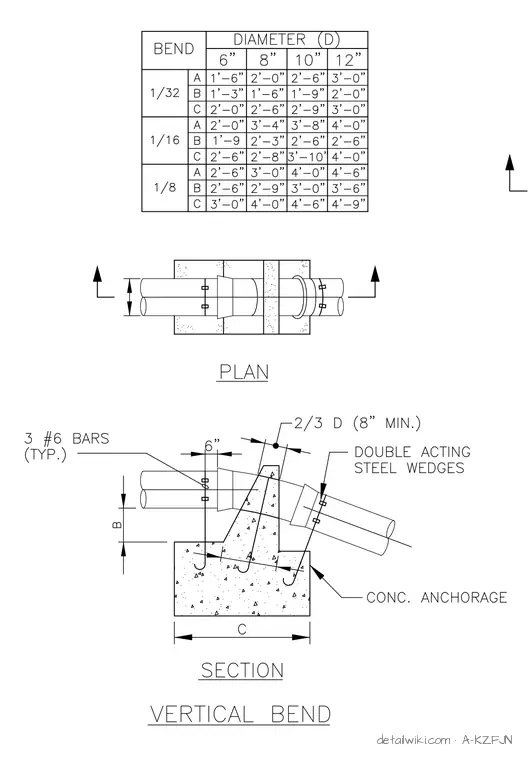

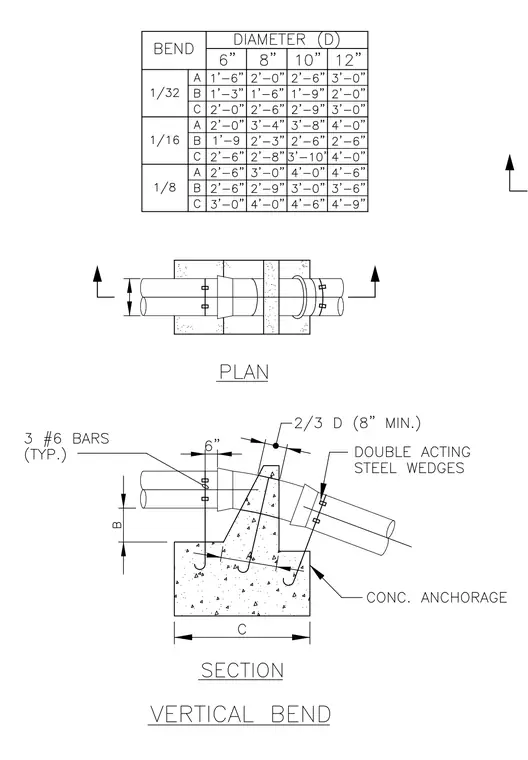

A vertical pipe bend anchored by a concrete thrust block. The assembly includes a pipe with double-acting steel wedges supported by concrete anchorage reinforced with three number six bars typically. A dimension table provides bend parameters A, B, and C for diameters of six, eight, ten, and twelve inches across different bend configurations.
