Auditorium Low Wall Cap and Wood Trim Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

About this detail

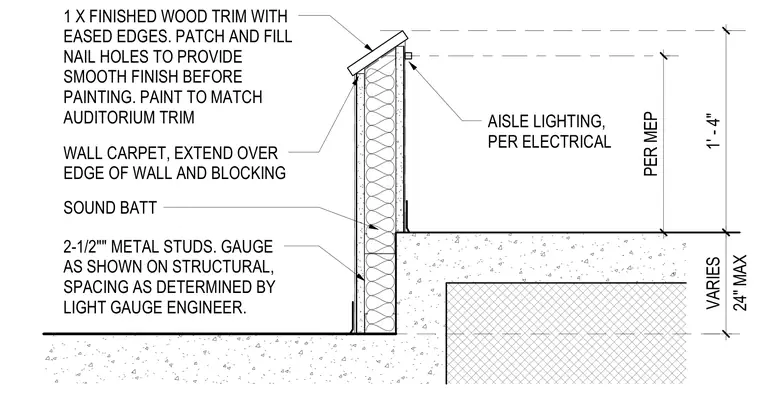

A low auditorium wall is framed with two-and-a-half-inch metal studs, with gauge and spacing determined by the structural engineer and light gauge engineer. Sound batt insulation fills the stud cavity. The wall is finished with wall carpet extending over the edge of the wall and blocking, capped with a one-inch finished wood trim with eased edges, patch and fill nail holes to provide smooth finish before painting, and painted to match auditorium trim. Aisle lighting is integrated per electrical requirements.
