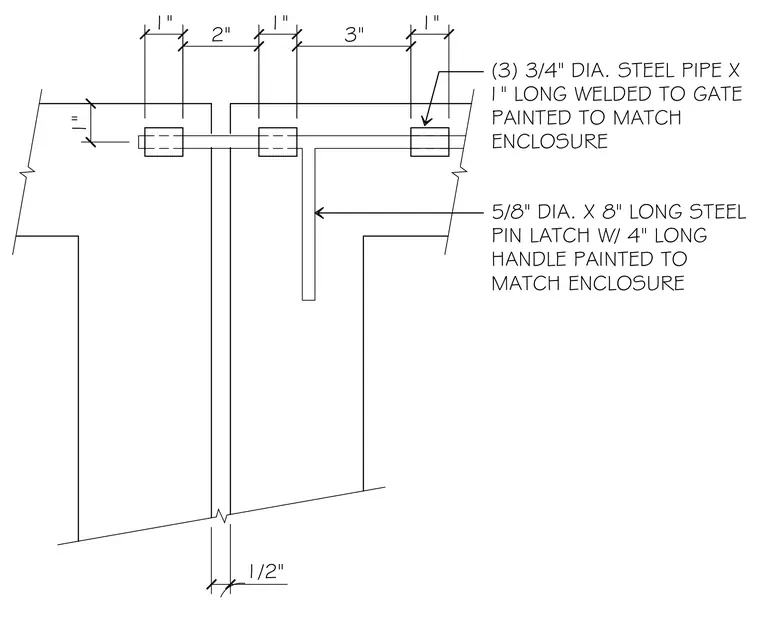

Three three-quarter-inch diameter steel pipes measuring one inch long are welded to the gate and painted to match the enclosure, serving as guides for the latch mechanism. A five-eighths-inch diameter by eight-inch long steel pin latch with a four-inch long handle slides through the guide pipes and is finished with paint matching the enclosure.
(3) 3/4" DIA. STEEL PIPE X 1" LONG WELDED TO GATE PAINTED TO MATCH ENCLOSURE 5/8" DIA. X 8" LONG STEEL PIN LATCH W/ 4" LONG HANDLE PAINTED TO MATCH ENCLOSURE 1" 1" 2" 1" 3" 1" 1/2" ---- / 7' -7' / /' 7' 7' 7' -V c:i \ 44
