This two-hour fire-rated shaftwall assembly, designated as UL U415 System B, is constructed with four-inch twenty-gauge minimum C-H metal studs spaced at twenty-four inches on center. The assembly is faced on one side with a one-inch gypsum board liner panel and on the opposite side with one layer of five-eighths-inch gypsum board. Additionally, a one-half-inch number sixteen expanded metal mesh is attached over the one-inch gypsum board liner side.

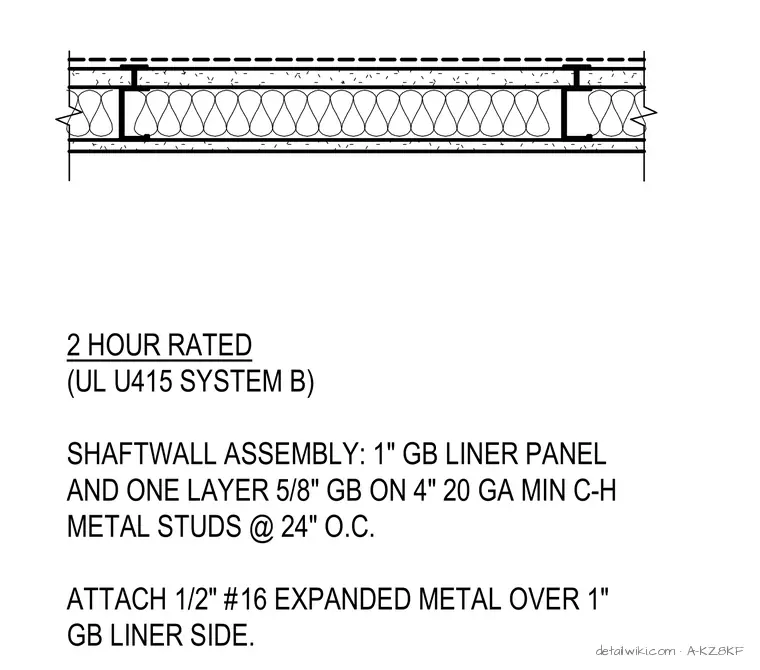

2 HOUR RATED (UL U415 SYSTEM B) SHAFTWALL ASSEMBLY: 1" GB LINER PANEL AND ONE LAYER 5/8" GB ON 4" 20 GA MIN C-H METAL STUDS @ 24" O.C. ATTACH 1/2" #16 EXPANDED METAL OVER 1" GB LINER SIDE.
