This assembly consists of a gypsum board shaft wall assembly paired with multi-layer gypsum board partitions on metal framing. An acoustic blanket insulation is installed within the stud cavity where required. A minimum one-quarter inch joint sealant bead is applied at the base intersection. The configuration complies with Underwriters Laboratories UL Design U497 and UL Design U438.

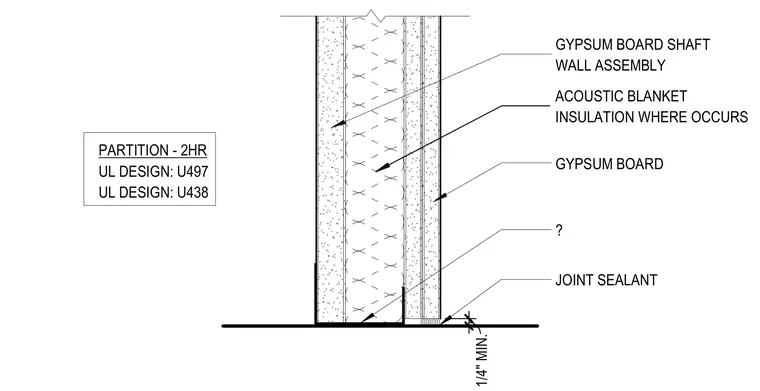

PARTITION - 2HR UL DESIGN: U497 UL DESIGN: U438 1 / 4 " M I N . JOINT SEALANT GYPSUM BOARD GYPSUM BOARD SHAFT WALL ASSEMBLY ? ACOUSTIC BLANKET INSULATION WHERE OCCURS
