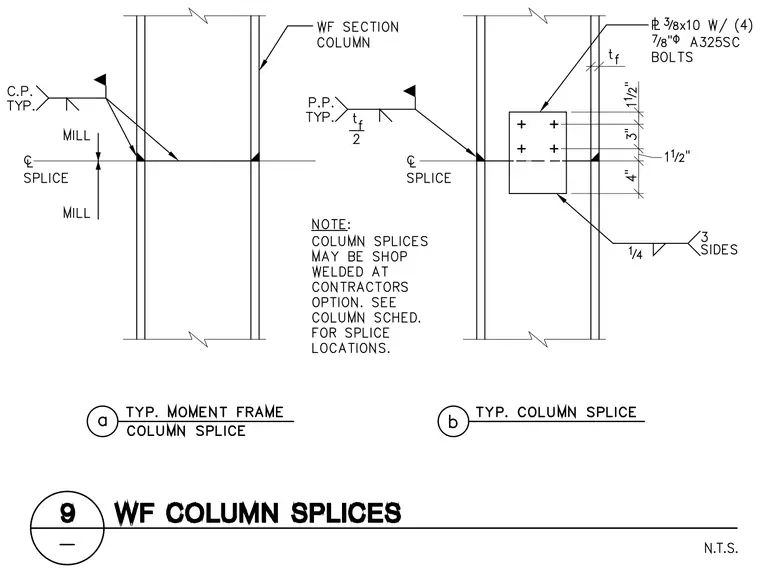

Two typical wide-flange column splice configurations are shown with flange and web connection details. The first detail shows a welded moment frame column splice with complete joint penetration welds on the flanges and mill tolerances at the centerline splice. The second detail shows a bolted flange plate splice utilizing a three-eighths by ten-inch plate fastened with four seven-eighths-inch diameter A325-SC bolts on each side of the splice. A note indicates that column splices may be shop welded at the contractor's option, referencing the column schedule for splice locations.
