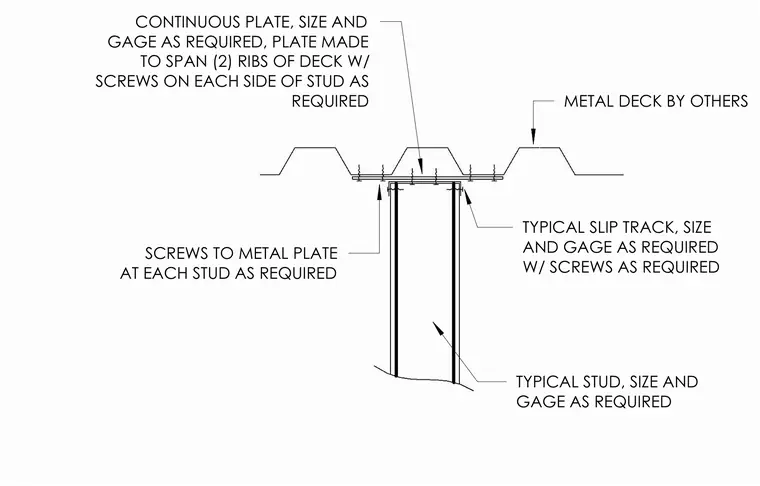

A typical cold-formed steel stud wall terminates below a metal deck and connects via a slip track and continuous metal plate. The continuous plate spans two ribs of the metal deck and is secured with screws on each side of the stud. Screws fasten the typical slip track to the metal plate at each stud location. The metal deck above is provided by others.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
