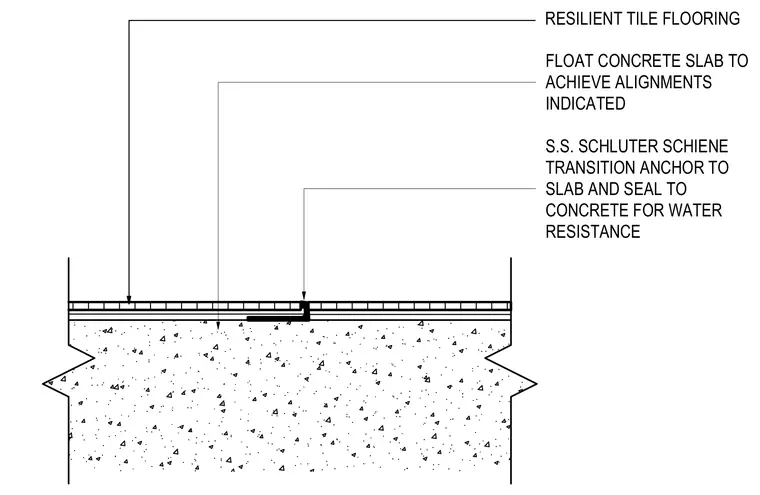

Resilient tile flooring is installed over a floated concrete slab to achieve indicated alignments. A stainless steel Schluter-Schiene transition profile is anchored directly to the concrete slab and sealed for water resistance.
RESILIENT TILE FLOORING FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER SCHIENE TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE
