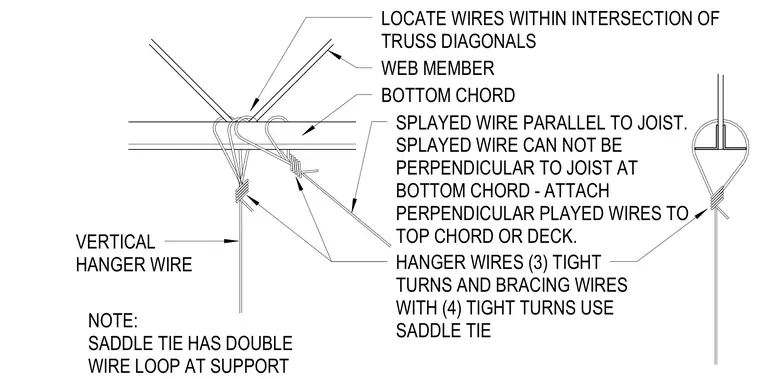

Vertical hanger wires and splayed seismic bracing wires attach to a truss bottom chord using saddle ties with a double wire loop at the support. Hanger wires feature three tight turns, while bracing wires feature four tight turns. Splayed wires running parallel to the joist attach to the bottom chord, while perpendicular splayed wires attach to the top chord or deck. Wires are positioned precisely within the intersection of truss diagonals and web members.
WEB MEMBER BOTTOM CHORD SPLAYED WIRE PARALLEL TO JOIST. SPLAYED WIRE CAN NOT BE PERPENDICULAR TO JOIST AT BOTTOM CHORD - ATTACH PERPENDICULAR PLAYED WIRES TO TOP CHORD OR DECK. HANGER WIRES (3) TIGHT TURNS AND BRACING WIRES WITH (4) TIGHT TURNS USE SADDLE TIE LOCATE WIRES WITHIN INTERSECTION OF TRUSS DIAGONALS VERTICAL HANGER WIRE NOTE: SADDLE TIE HAS DOUBLE WIRE LOOP AT SUPPORT
