Hydronic Piping Enclosure at Existing Wall

Materials

Metal (misc.)

Elements

Walls Insulation Anchors / Embeds

Connections

Embed Plate

About this detail

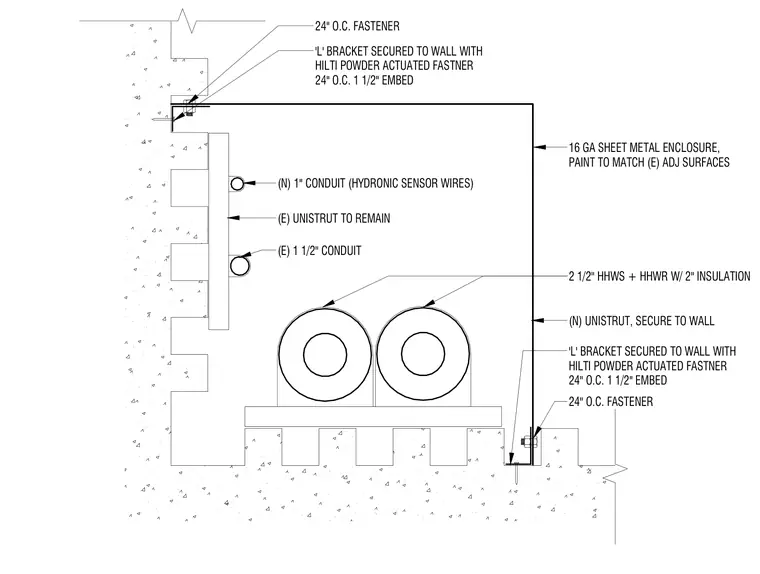

A sixteen-gauge sheet metal enclosure is secured to an existing wall using L-brackets fastened with Hilti powder-actuated fasteners spaced twenty-four inches on center with one and a half inch embedment, and painted to match adjacent surfaces. The enclosure houses two and a half inch heating hot water supply and return piping with two inches of insulation, an existing Unistrut channel to remain, a new Unistrut channel secured to the wall, a one-inch conduit for hydronic sensor wires, and a one and a half inch conduit.
