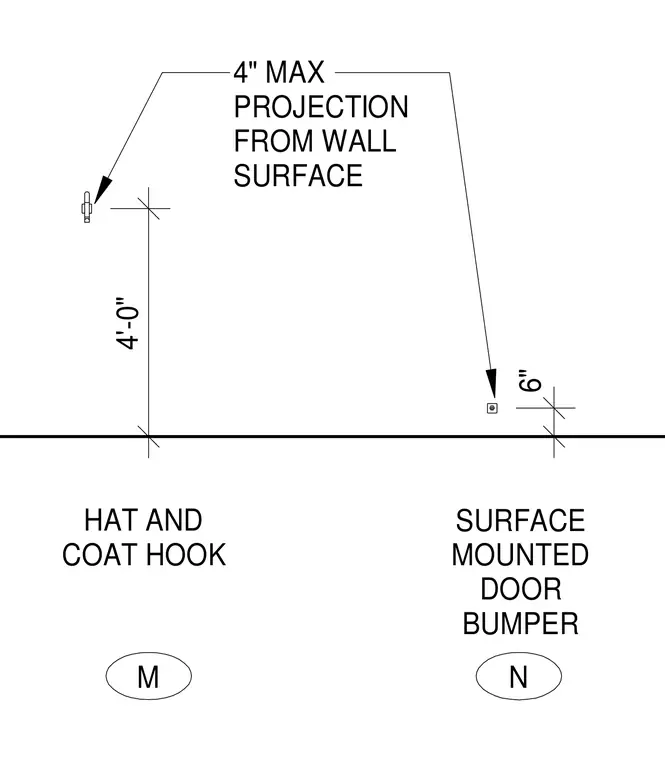

A surface-mounted hat and coat hook is positioned four feet above the finished floor, and a surface-mounted door bumper is located six inches above the floor. Both hardware items are limited to a maximum projection of four inches from the wall surface.
4'-0" 6" HAT AND COAT HOOK SURFACE MOUNTED DOOR BUMPER M N 4" MAX PROJECTION FROM WALL SURFACE
