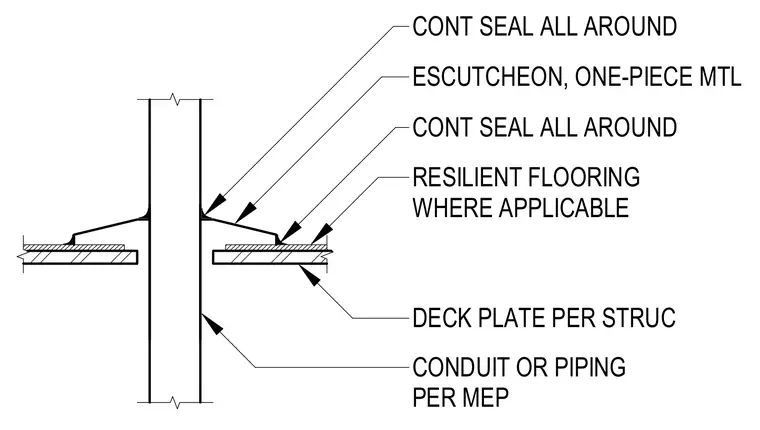

A conduit or piping penetration passes through a structural deck plate sized per structural drawings. A one-piece metal escutcheon surrounds the pipe or conduit at the floor surface. Continuous seals are applied around the perimeter of the penetration and the escutcheon plate. Resilient flooring is installed where applicable up to the assembly.
DECK PLATE PER STRUC CONDUIT OR PIPING PER MEP CONT SEAL ALL AROUND RESILIENT FLOORING WHERE APPLICABLE ESCUTCHEON, ONE-PIECE MTL CONT SEAL ALL AROUND
