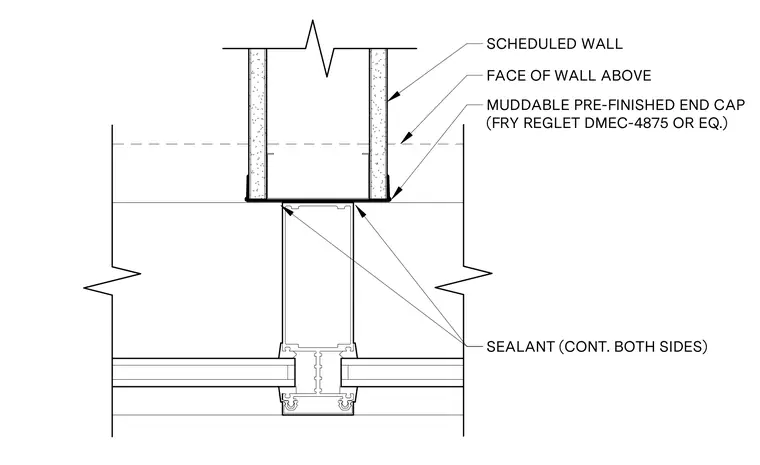

An interior partition wall terminates at an aluminum window mullion, finished with a muddable pre-finished end cap such as Fry Reglet DMEC-4875. Continuous sealant is applied on both sides of the joint between the end cap and the mullion assembly. The scheduled wall aligns with the face of the wall above.
SCHEDULED WALL FACE OF WALL ABOVE MUDDABLE PRE-FINISHED END CAP (FRY REGLET DMEC-4875 OR EQ.) SEALANT (CONT. BOTH SIDES)
