Architectural · A-KYBND

Mechanical Louver Head Detail at Curtain Wall

Materials

Elements

Walls Waterproofing / Flashing Connections / Plates

About this detail

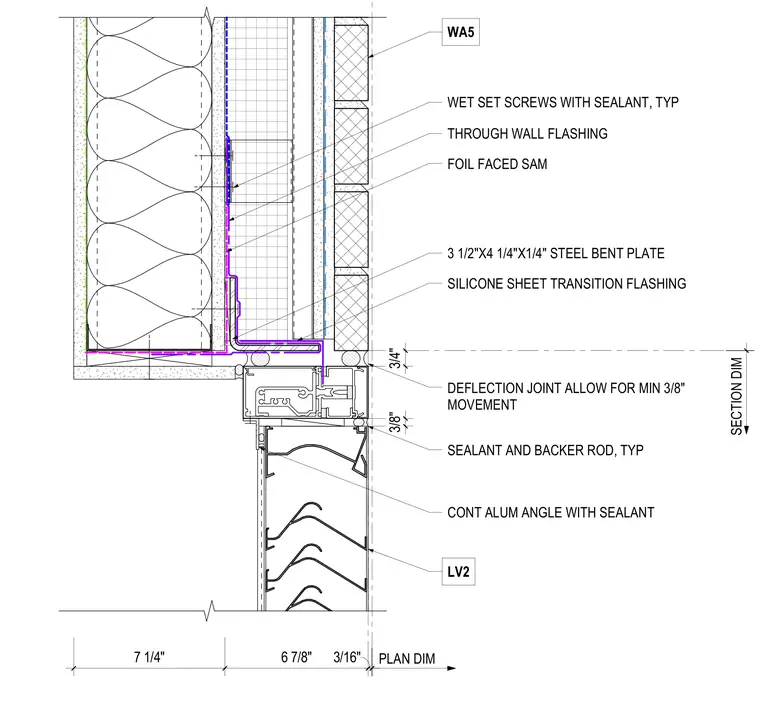

Head condition of a mechanical louver integrated with a curtain wall assembly. A 3-1/2 inch by 4-1/4 inch by 1/4 inch steel bent plate anchors the assembly, tied back with wet-set screws containing sealant. Waterproofing is managed using through-wall flashing, foil-faced self-adhered membrane, and silicone sheet transition flashing. A continuous aluminum angle with sealant forms the joint above the louver. A 3/8-inch deflection joint allows for a minimum of 3/8-inch movement, sealed with backer rod and sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
