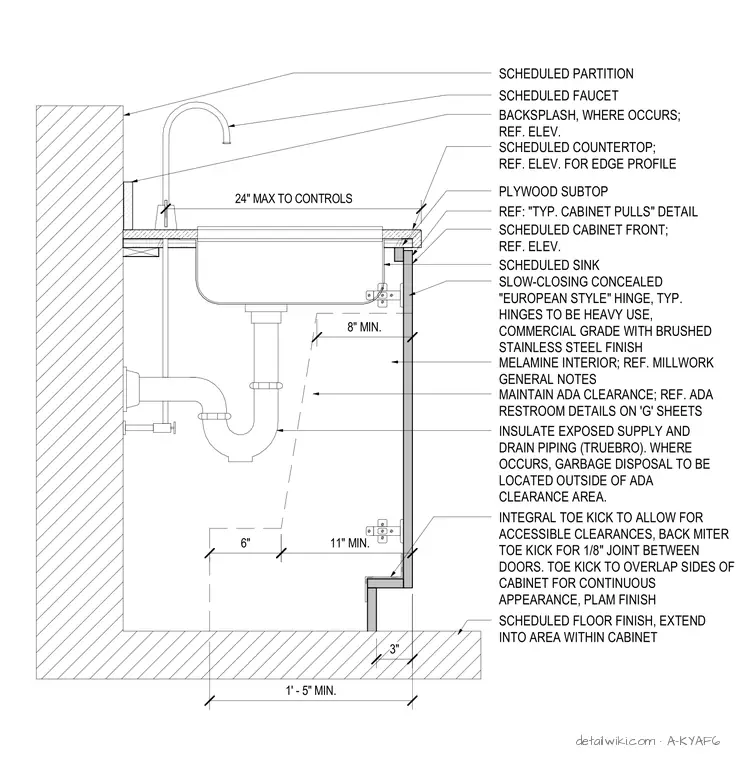

This assembly features a scheduled sink mounted within a countertop supported by a plywood subtop and cabinet front. The cabinet utilizes heavy-duty, commercial-grade concealed European-style hinges with a brushed stainless steel finish. Exposed supply and drain piping must be insulated using a Truebro-type system to maintain ADA compliance. The cabinet includes an integral toe kick designed to provide necessary accessible clearances, with the finish extending into the cabinet interior. Garbage disposals, where specified, must be located outside the designated ADA clearance zone, which requires a minimum of 24 inches to controls and specific knee and toe space dimensions.
Text on the drawing
SCHEDULED SINK 24" MAX TO CONTROLS SCHEDULED FAUCET MAINTAIN ADA CLEARANCE; REF. ADA RESTROOM DETAILS ON 'G' SHEETS INTEGRAL TOE KICK TO ALLOW FOR INSULATE EXPOSED SUPPLY AND DRAIN PIPING (TRUEBRO). WHERE OCCURS, GARBAGE DISPOSAL TO BE LOCATED OUTSIDE OF ADA CLEARANCE AREA. SLOW-CLOSING CONCEALED "EUROPEAN STYLE" HINGE, TYP. HINGES TO BE HEAVY USE, COMMERCIAL GRADE WITH BRUSHED STAINLESS STEEL FINISH BACKSPLASH, WHERE OCCURS; REF. ELEV. SCHEDULED PARTITION SCHEDULED COUNTERTOP; REF. ELEV. FOR EDGE PROFILE REF: "TYP. CABINET PULLS" DETAIL MELAMINE INTERIOR; REF. MILLWORK GENERAL NOTES SCHEDULED CABINET FRONT; REF. ELEV. PLYWOOD SUBTOP 8" MIN.
