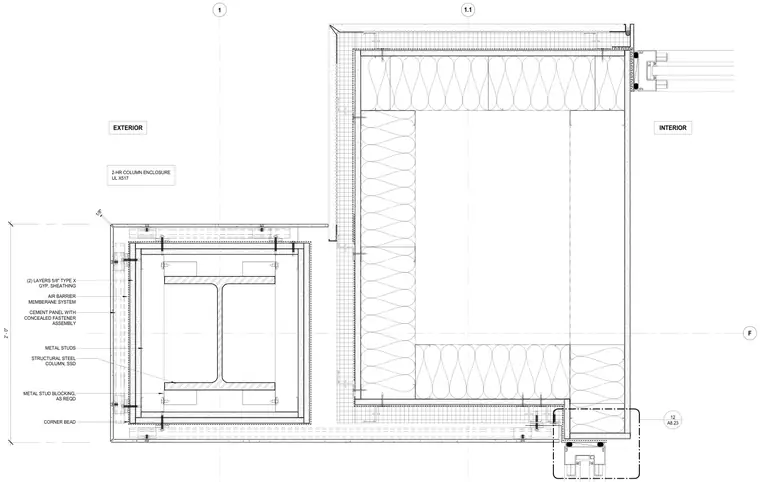

A two-hour fire-rated column enclosure surrounds a structural steel column. The assembly comprises cold-formed metal studs with required blocking and two layers of 5/8-inch Type X gypsum sheathing. An exterior air barrier membrane system is applied beneath cement panels secured with concealed fasteners. Corner beads finish the exterior corners of the enclosure assembly.
1 F 1.1 INTERIOR EXTERIOR 2' - 0" 2-HR COLUMN ENCLOSURE UL X517 METAL STUDS AIR BARRIER MEMBERANE SYSTEM (2) LAYERS 5/8" TYPE X GYP. SHEATHING CEMENT PANEL WITH CONCEALED FASTENER ASSEMBLY METAL STUD BLOCKING, AS REQD STRUCTURAL STEEL COLUMN, SSD CORNER BEAD 1/8" A8.23 12
