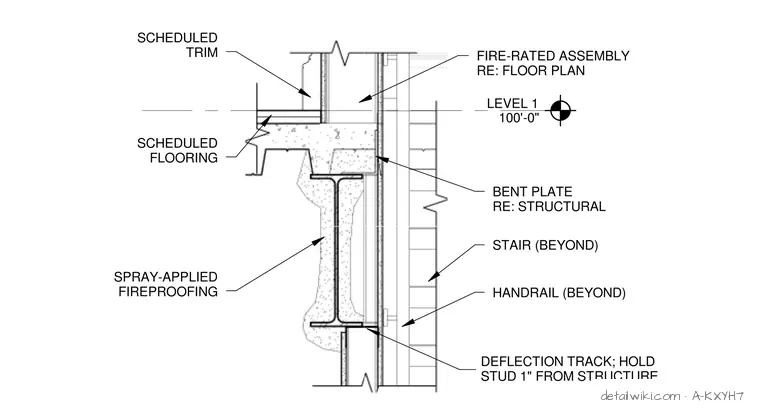

A-KXYH7 — Rated Wall at Stair to Floor

Architectural · A-KXYH7

Rated Wall at Stair to Floor

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Steel Timber / Wood

Elements

Connections / Plates Floors / Slabs Partitions Railings / Guards Stairs Walls

Connections

Expansion / Slip Connection

Text on the drawing

LEVEL 1 100'-0" SPRAY-APPLIED FIREPROOFING HANDRAIL (BEYOND) STAIR (BEYOND) DEFLECTION TRACK; HOLD STUD 1" FROM STRUCTURE BENT PLATE RE: STRUCTURAL FIRE-RATED ASSEMBLY RE: FLOOR PLAN SCHEDULED FLOORING SCHEDULED TRIM

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
