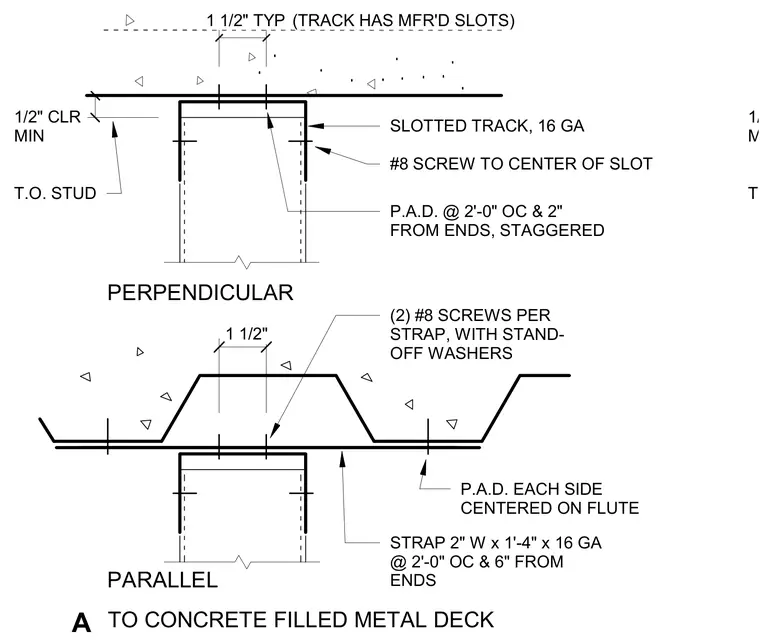

Cold-formed steel stud framing connects to a concrete filled metal deck at the head of the wall in both perpendicular and parallel orientations. The perpendicular condition utilizes a sixteen gauge slotted track with number eight screws fastened to the center of the slots and manufacturer-approved deflection pads spaced two feet on center and two inches from ends, maintaining a half-inch minimum clearance to the top of the stud. The parallel condition incorporates a two-inch wide by one-foot four-inch long sixteen gauge strap with two number eight screws per strap and stand-off washers, secured with manufacturer-approved pads on each side centered on the flute and spaced two feet on center and six inches from ends.
PERPENDICULAR PARALLEL SLOTTED TRACK, 16 GA #8 SCREW TO CENTER OF SLOT P.A.D. @ 2'-0" OC & 2" FROM ENDS, STAGGERED (2) #8 SCREWS PER STRAP, WITH STAND- OFF WASHERS P.A.D. EACH SIDE CENTERED ON FLUTE STRAP 2" W x 1'-4" x 16 GA @ 2'-0" OC & 6" FROM ENDS 1/2" CLR MIN T.O. STUD 1/2" CLR MIN T.O. STUD (TRACK HAS MFR'D SLOTS) 1 1/2" TYP 1 1/2" TO CONCRETE FILLED METAL DECK A
