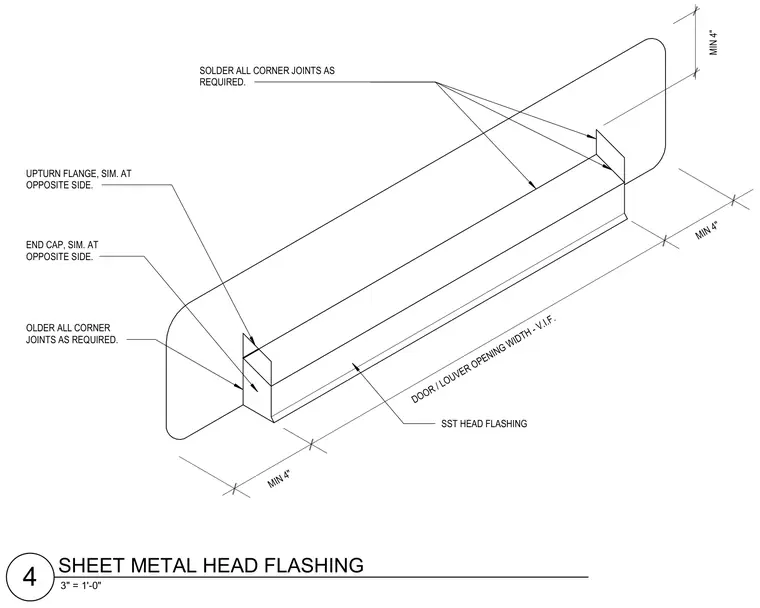

A stainless steel head flashing assembly is designed for door or louver openings. The assembly features an upturn flange and end caps on both sides, with a minimum four-inch extension dimensioned at the ends. All corner joints require soldering to ensure proper waterproofing. The width of the flashing spans the door or louver opening width as verified in the field.
END CAP, SIM. AT OPPOSITE SIDE. DOOR / LOUVER OPENING WIDTH - V.I.F. MIN 4" MIN 4" MIN 4" UPTURN FLANGE, SIM. AT OPPOSITE SIDE. SST HEAD FLASHING SOLDER ALL CORNER JOINTS AS REQUIRED. OLDER ALL CORNER JOINTS AS REQUIRED. 3" = 1'-0" 4 SHEET METAL HEAD FLASHING
