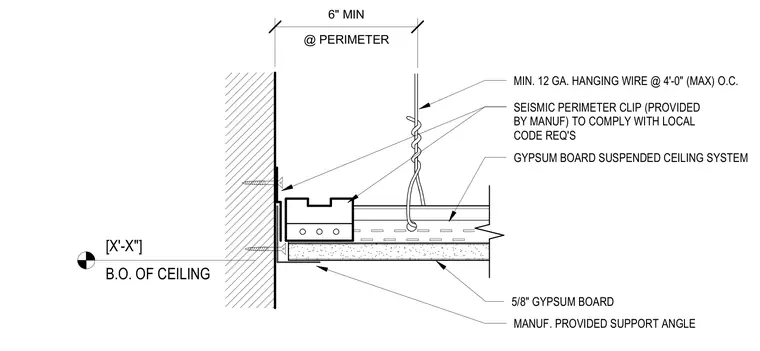

A gypsum board suspended ceiling system terminates at a wall utilizing a manufacturer-provided support angle fastened to the wall framing. A seismic perimeter clip, provided by the manufacturer to comply with local code requirements, secures the ceiling grid near the perimeter. Minimum 12-gauge hanging wires support the ceiling assembly at four feet maximum on center. The ceiling surface consists of five-eighths inch gypsum board attached to the framing.
SEISMIC PERIMETER CLIP (PROVIDED BY MANUF) TO COMPLY WITH LOCAL CODE REQ'S [X'-X"] B.O. OF CEILING MIN. 12 GA. HANGING WIRE @ 4'-0" (MAX) O.C. GYPSUM BOARD SUSPENDED CEILING SYSTEM 5/8" GYPSUM BOARD MANUF. PROVIDED SUPPORT ANGLE @ PERIMETER 6" MIN
