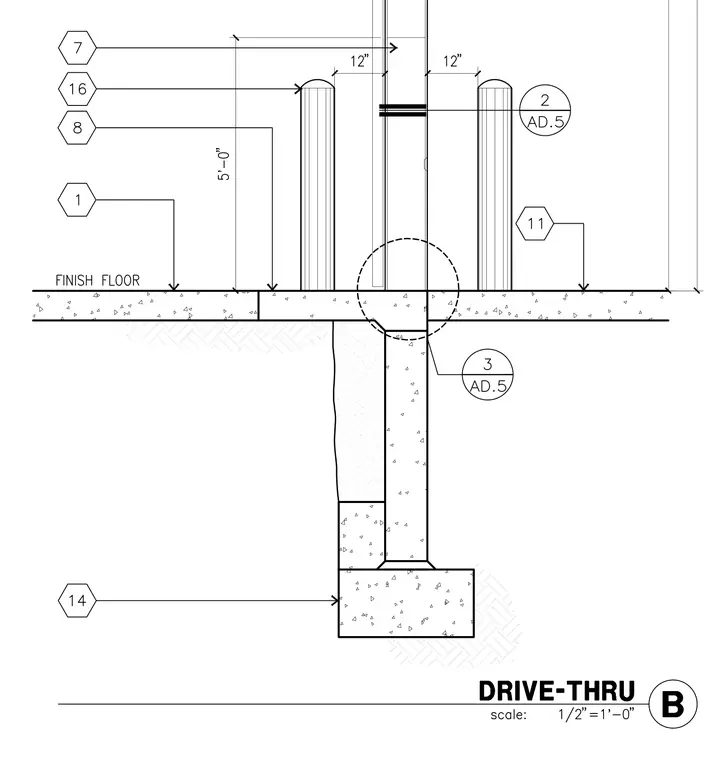

A reinforced concrete stem wall bears on a continuous concrete footing below finish floor grade, supporting a slab-on-grade with perimeter and interior dimensions. Protective bollards stand twelve inches clear of the wall on both sides, anchored through the finish floor assembly at a specified height of five feet zero inches above the slab. A vertical wall assembly rises from the slab intersection, detailed with specific clearance zones and reference callouts to adjacent sheet details. The subgrade material is indicated beneath the footing and slab elements, completing the foundation interface.
