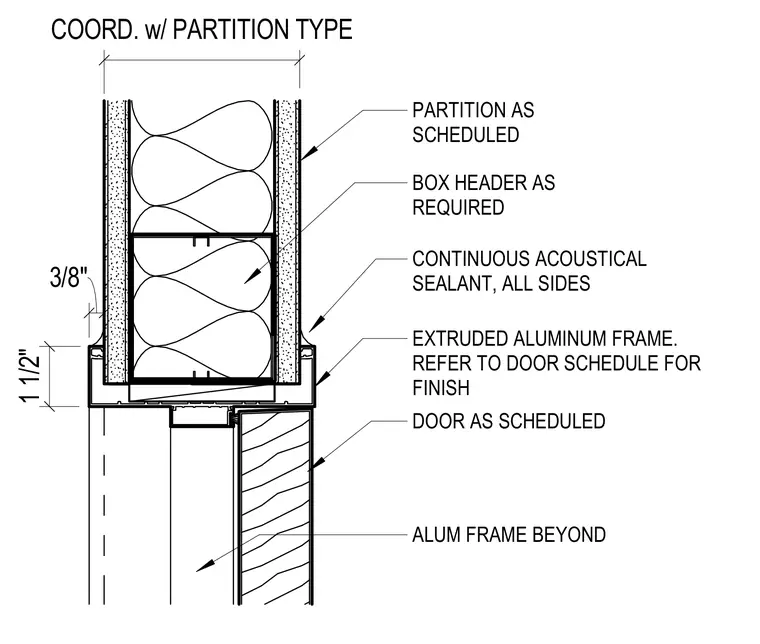

An extruded aluminum door frame is secured beneath a box header framing member that coordinates with the scheduled partition type. Continuous acoustical sealant is applied to all sides at the frame-to-partition junction. The door leaf meets the frame header assembly with specified clearances and dimensions.
PARTITION AS SCHEDULED EXTRUDED ALUMINUM FRAME. REFER TO DOOR SCHEDULE FOR FINISH DOOR AS SCHEDULED ALUM FRAME BEYOND CONTINUOUS ACOUSTICAL SEALANT, ALL SIDES BOX HEADER AS REQUIRED COORD. w/ PARTITION TYPE 1 1/2" 3/8"
