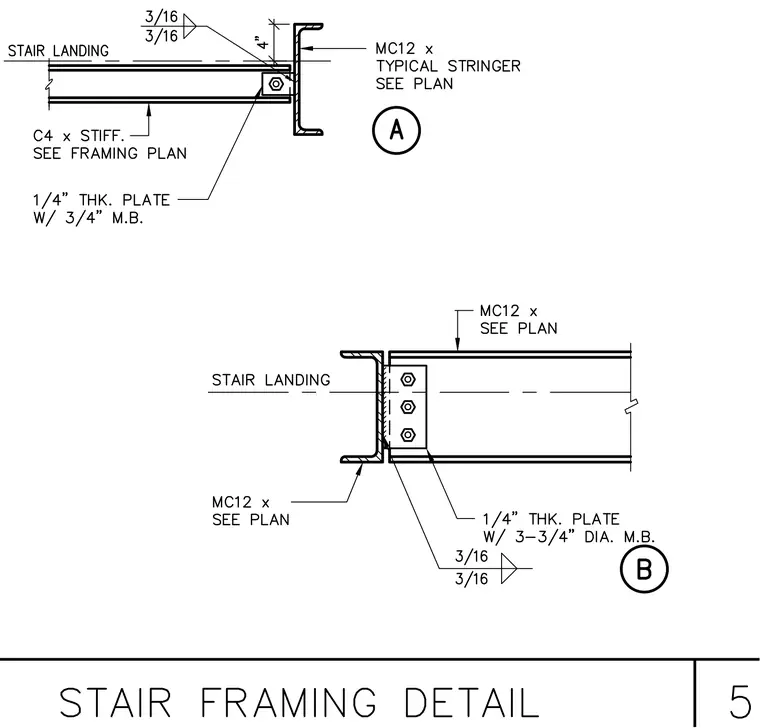

A stair landing framing connection utilizing channel stringers, connection plates, and machine bolts. The assembly features an MC12 channel typical stringer connected with a one-quarter-inch thick plate and three-quarter-inch machine bolts, welded with three-sixteenth-inch fillet welds. A C4 channel with stiffeners per the framing plan ties into the landing framing. Additional connections incorporate MC12 channel stringers sized per plan with three-sixteenth-inch welds.
