Suspended ceiling hanger wire wraps around the structural framing member using a saddle tie with a double loop at the support point. The 9 gauge hanger wire requires three tight turns within three inches. Multiple saddle ties alternate back and forth to prevent twisting of the supported member. A saddle tie is required for any width greater than one-quarter inch.

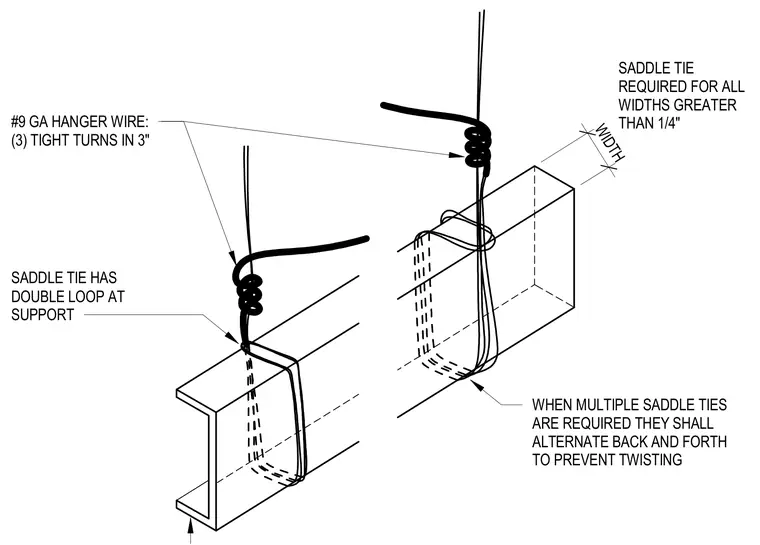

WHEN MULTIPLE SADDLE TIES ARE REQUIRED THEY SHALL ALTERNATE BACK AND FORTH TO PREVENT TWISTING #9 GA HANGER WIRE: (3) TIGHT TURNS IN 3" SADDLE TIE HAS DOUBLE LOOP AT SUPPORT WIDTH SADDLE TIE REQUIRED FOR ALL WIDTHS GREATER THAN 1/4"
