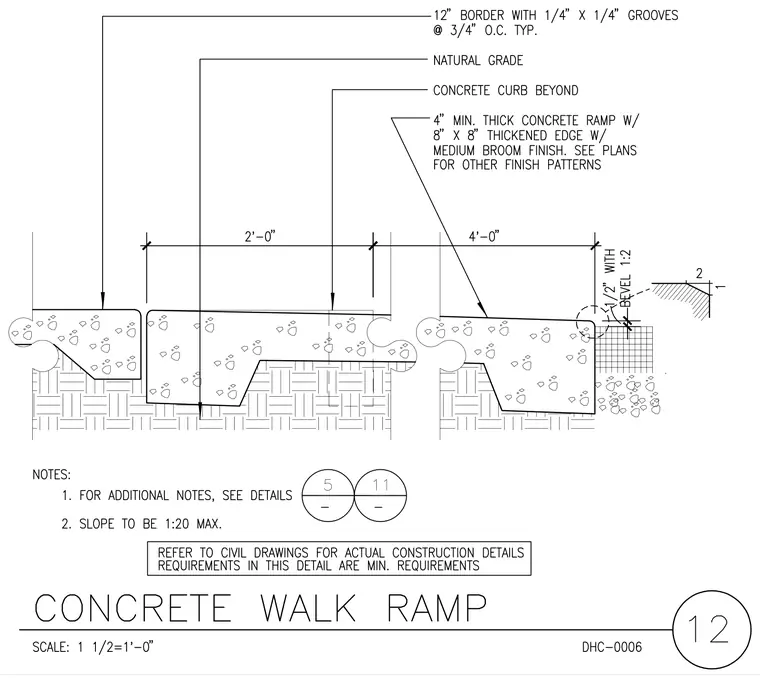

A concrete walk ramp assembly is founded on natural grade. The ramp features a four-inch minimum thickness concrete ramp with an eight-inch by eight-inch thickened edge and a medium broom finish. A twelve-inch border with one-quarter-inch by one-quarter-inch grooves at three-quarters of an inch on center is provided. Additional notes specify a maximum slope of one to twenty and reference civil drawings for further construction requirements.
