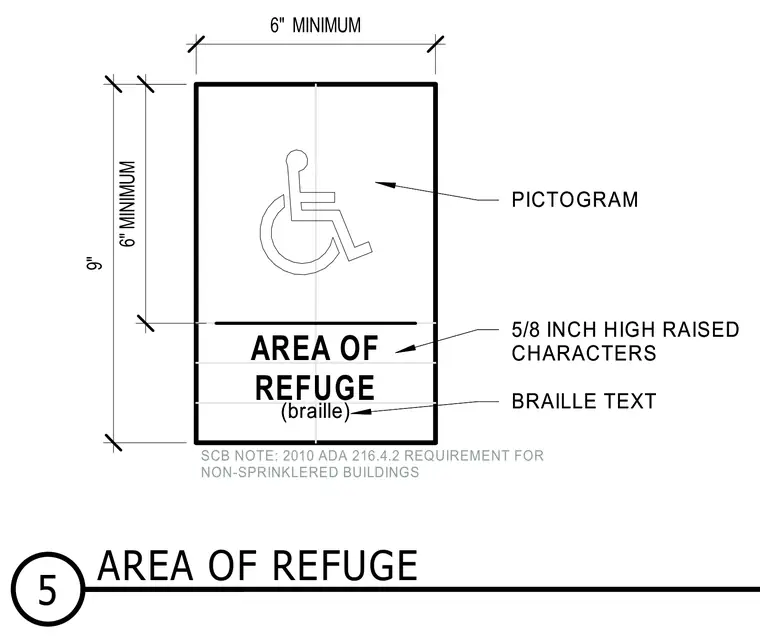

The area of refuge sign consists of a wheelchair accessibility pictogram positioned above five-eighths inch high raised characters and corresponding braille text. The overall sign measures nine inches in height by six inches in minimum width, with the pictogram occupying a six inch minimum square at the top. A note references the 2010 ADA 216.4.2 requirement for non-sprinklered buildings.
6" MINIMUM 9" (braille) AREA OF REFUGE BRAILLE TEXT 5/8 INCH HIGH RAISED CHARACTERS SCB NOTE: 2010 ADA 216.4.2 REQUIREMENT FOR NON-SPRINKLERED BUILDINGS PICTOGRAM 6" MINIMUM (braille) BRAILLE TEXT 5/8 INCH HIGH RAISED CHARACTERS PICTOGRAM 5 AREA OF REFUGE
