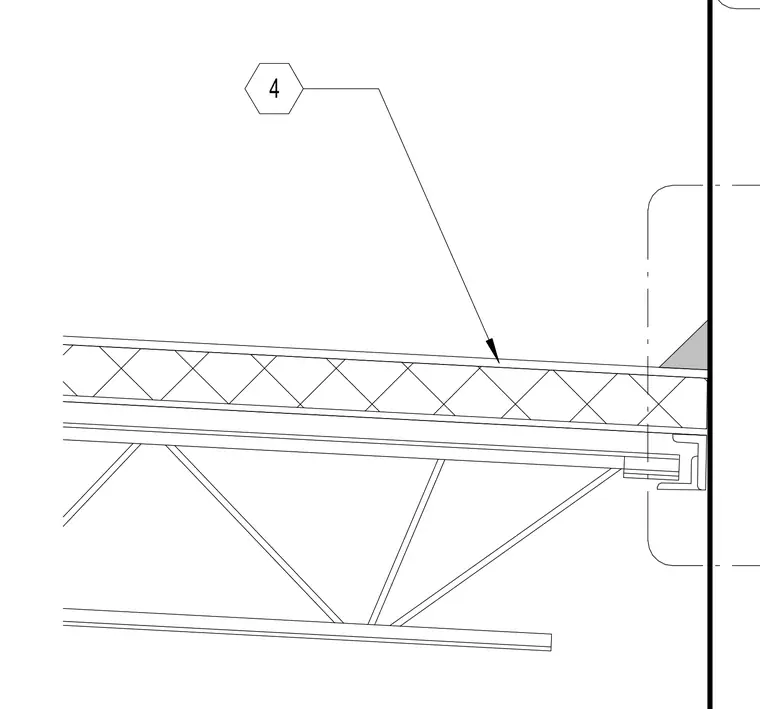

An open web steel joist terminates at a vertical wall element with a bearing connection. A callout bubble references the top chord of the joist assembly. The joist seats against a support track or ledger attached to the vertical surface.
